• Digital Viscometer
  • DHJ-8S
  • Measurement range: 1 ~2×1000000mPa.s, Rotor speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm.
  • DHJ-8S
  • Digital Viscometer
  • Measurement range: 1 ~2×1000000mPa.s, Rotor speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm.
digital Viscometer DHJ-8S features high measurement sensitivity, reliable test results, easy operation, and a stylish appearance. It is an instrument used to measure the absolute viscosity of Newtonian fluids and the apparent viscosity of non-Newtonian fluids. It can be widely used in the measurement of viscosity of various objects such as fats, paints, plastics, medicines, jewelry, coatings, and detergents.
Product Introduction
Digital Viscometer DHJ-8S features high measurement sensitivity, reliable test results, easy operation, and a stylish appearance. It is an instrument used to measure the absolute viscosity of Newtonian fluids and the apparent viscosity of non-Newtonian fluids. It can be widely used in the measurement of viscosity of various objects such as fats, paints, plastics, medicines, jewelry, coatings, and detergents.


Product Features
Digital Viscometer is a digital viscometer, driven by a motor and variable speed belt to ensure constant rotation of the rotor. As the rotor rotates in the liquid, the viscosity of the liquid produces a corresponding viscous torque on the rotor, which increases as the viscosity of the liquid increases and decreases as the viscosity of the liquid decreases. The viscous torque acting on the rotor is detected by a sensor, and the viscosity of the liquid being measured is calculated after being processed by a computer.
Digital Viscometer uses microcomputer technology and can easily set the measuring range (rotor number and speed). It also performs digital processing of the data detected by the sensor and clearly displays on the screen the rotor number, speed, viscosity value of the measured liquid, and its full range percentage value during measurement.

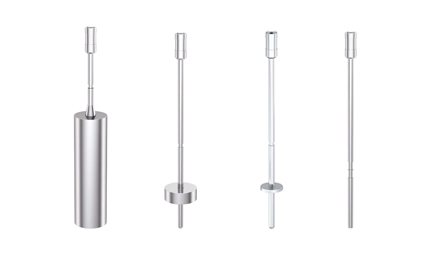

DHJ-8S is equipped with 4 rotors (No. 1, 2, 3, 4) and 8 speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm), providing 32 combinations that can measure the viscosity of various liquids within the measuring range.


Technical Parameters
Model: DHJ-8S
Measurement range: 1 ~2×106mPa.s
Rotor specifications: Rotor 1-4, optional rotor 0 for low viscosity measurement up to 0.1mPa.s
Rotor speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm
Automatic gear: Automatically selects suitable rotor and speed
Operating interface language: Chinese/English
Stable reading cursor: Vertical block cursor shows basic stability when it is full
Measurement accuracy: ±2% (Newtonian fluids)
Power supply: AC 220V±10% 50Hz±10%
Working environment: Temperature 5℃~35℃, relative humidity not greater than 80%
Dimensions: 370*325*280mm
Net weight: 6.8 kg


Single Page - Color Page
Name: Author: Action:
Digital Viscometer DHJ-8S Viscometer Download


Related products
Name: Model:
Viscosity DHJ-1S
Digital Viscometer DHJ-8S
Rotary Viscometer DHJ-5S
Product List
DHJ-8S Unit
Host Machine Unit
Rotor 1-4 set
Rotor 0 set
Base unit
Protective cover unit
Lifting column set
A pair of pliers (one large and one small) set
Hexagonal socket head piece
Power adapter set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
Optional
1
1
1
2
1
1
1
1
1
