| Product Introduction |
|---|
| LAWSON Scientific dry constant temperature metal bead bath (Dry bath incubator) features innovative design that sets it apart from traditional metal and water (oil) baths. |

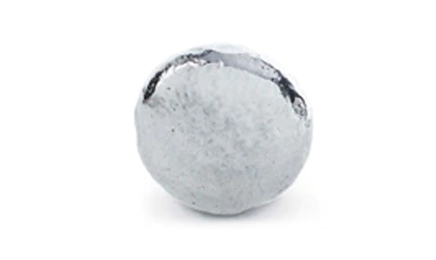

| The composition module of this new type of constant temperature metal armor bead bath uses LAWSON Scientific's newly launched Beads Bath, which adopts a five-sided heating method that not only surpasses the upper limit of the boiling point (100℃) of the water bath but also avoids the limitations of the pore size of traditional metal bath modules. |
| It is suitable for various conventional laboratory containers, such as serum bottles, conical tubes, centrifuge tubes, test tubes, microplates, and slides, and can adapt to tubes of any shape and volume. The LAWSON constant temperature metal bead bath provides excellent temperature uniformity and accuracy. Its large capacity design can accommodate larger containers in a single operation, or more small containers to better serve your laboratory. |
| Product Features |
|---|
| 1. Innovative design with specialized beads for completing experiments that traditional water baths cannot accomplish. |
| 2. Can run continuously for long periods without needing to plan for water bath time. No risk of drying up due to water evaporation. |
| 3. Clean and hygienic: Disinfecting the beads with 70% ethanol once a month is sufficient. No need for disinfectants to clean the water bath tank. |
| 4. Neat: No need for accessories like test tube racks, bottle holders, or floaters to secure the samples. |
| 5. Recyclable: The beads are made of recyclable metal. |
| 6. More energy-efficient: Energy savings of over 4 times when the temperature is set to 65℃. Energy savings of over 2 times when set to 37℃. |
| 7. Fast startup technology with built-in bead bath tank. |
| Advantages of Metal Armor Bead Bath Series Products |
|---|
| 1) Low risk: Keep the laboratory space dry and less prone to contamination. |
| 2) Higher sample quality: The sample temperature can be kept constant both when in motion and at rest. |
| 3) Better results: Reagents can be kept at a constant temperature in a refrigerator or oven. |
| 4) Time-saving: The bead bath is always filled, clean, and can be used for a long time without interruption. |
| 5) Environmentally friendly: No pollution. |
| 6) Cost-saving: No need for ice makers, modules, etc. |
| Technical Parameters | |
|---|---|
| Model: | DHB-706 |
| Temperature Control Range: | Ambient temperature +5℃ ~ 120℃ |
| Heating Time: | ≤ 30 minutes (from 20℃ to 80℃) |
| Temperature Uniformity @37℃: | ≤±0.5℃ |
| Maximum Temperature Difference @37℃: | 0.5℃ |
| Temperature Display Accuracy: | 0.1℃ |
| Temperature Stability (@100~120℃): | ≤±1~3℃ |
| Temperature Stability (@40~70℃): | ≤±0.5℃ |
| Volume: | 6L (300*150*150mm) |
| Over-Temperature Protection Function: | Yes |
| Multi-Point Temperature Setting: | Support |
| Multi-Point Circulation Operation: | Support |
| Maximum Timing: | 99h59min |
| Maximum Temperature: | 120℃ |
| Maximum Power: | 500W |
| Product Size: | 360*365*250mm |
| Product Weight: | 13.2 kg |
| Related products | |
|---|---|
| Name: | Model: |
| Lab Armor Bead Baths | M714 |
| Lab Armor Bead Baths | M706 |
| Dry bath incubator | DHB-706 |
| DHB-706 | Unit |
|---|---|
| Host Machine | Unit |
| Protective armor beads | liters |
| Special Insulation Cover | Piece |
| Power cord | piece |
| User manual | copy |
| Certificate of qualification | copy |
| Warranty card | copy |
|
