• Thermostatic Metal Bath (Refrigerated Type)
  • DHC-100
  • Temperature control range: 0-100℃, oscillation speed range: 200-1800rpm.
  • DHC-100
  • Thermostatic Metal Bath (Refrigerated Type)
  • Temperature control range: 0-100℃, oscillation speed range: 200-1800rpm.
Temperature metal bath (refrigeration type), also known as constant temperature oscillator, constant temperature incubator, or oscillating constant temperature metal bath, uses a brushless DC motor and micro-processing technology combined with intelligent PID. It can quickly and stably maintain the target temperature after reaching it, saving waiting time and combining constant temperature and oscillation functions perfectly, greatly shortening experimental operation time and improving work efficiency. It is an ideal automated tool for sample incubation, catalysis, mixing, and preservation during reaction processes. The constant temperature oscillator has multiple functions such as heating and oscillation.
Product Features
1. Users can independently turn on or off the temperature control, oscillation, and timing functions to achieve multiple uses and improve equipment utilization;
2. The instrument uses a metal module with high temperature uniformity and convenient module replacement;
3. The instrument has fast heating speed, even heating, precise temperature control, and high stability;
4. The microprocessor control ensures superior temperature stability and uniformity;
5. The instrument uses a brushless DC motor with low noise, long service life, and no maintenance;
6. The instrument has an LCD display, which can display the current temperature and speed information in real time;
7. The instrument has a short oscillation jog function and temperature calibration function;
8. The oscillation speed is accurate and has small fluctuations;
9. When the program operation is finished, an alarm signal will be sent;
10. Optional power-off recovery function and automatic operation function when turning on the machine to meet different user needs;
11. Supports module classification custom calibration function.


Technical Parameters
Model: DHC-100
Temperature Control Range: 0~100℃
Heating Time: ≤ 15 minutes (from 20℃ to 100℃)
Temperature Uniformity/Stability: ≤±0.3℃/±0.1
Oscillation Amplitude and Mode: 3mm (horizontal rotation)
Oscillation Speed Range: 200~1800rpm
Standard Module: 35×2.0ml
Long-Time Setting: 99h59min
Multi-Point Operation: Support
Multi-Point Circulating Operation: Support (up to 99 times)
Auto Preheat: Support
Power-on automatic operation: Support
Power-off automatic recovery: Support
Maximum temperature: 100℃
Product size: 280×100×185 mm
Product weight: 8.2 kg

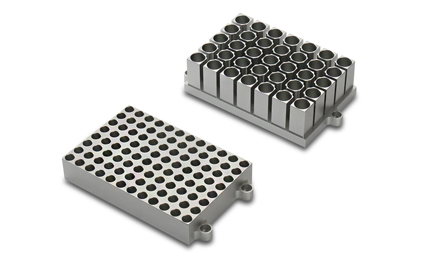

Module Model Selection
Model Aperture and Tube Quantity Maximum Temperature Maximum Speed
DW30 96×0.2ml Standard Plate 100℃ 1500rpm
DW31 54×0.5ml centrifuge tube 100℃ 1500rpm
DW32 35×1.5ml centrifuge tube 100℃ 1500rpm
DW33 35×2.0ml centrifuge tube 100℃ 1500rpm
DW34 15×0.5ml+20×1.5ml centrifuge tube 100℃ 1500rpm
DW35 24× diameter ≤φ12mm test tube 100℃ 1200rpm
DW36 32×0.2ml+25×1.5ml centrifuge tube 100℃ 1500rpm
DW37 32×0.2ml+10×0.5ml+15×1.5ml centrifuge tube 100℃ 1500rpm
DW38 103×67×30 (square groove module) 100℃ 1500rpm
DW39 96×0.2ml ELISA plate (flat bottom) 100℃ 1500rpm
DW40 24×5ml centrifuge tube 100℃ 1200rpm
DW41 12×15ml centrifuge tube 100℃ 600rpm
DW42 6×50ml centrifuge tube 100℃ 600rpm
DW43 15×10ml centrifuge tube 100℃ 600rpm
Customized non-standard Customizable / /


Single Page - Color Page
Name: Author: Action:
Thermostatic Metal Bath DHC-100 dry bath Download


Related products
Name: Model:
Thermostatic Metal Bath DHC-100
Oscillating Thermostatic Mixer DHS-100
Product List
DHC-100 Unit
Host Machine Unit
Metal module piece
Special Screwdriver (used for disassembling the mo Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
