Product Introduction |
---|
DH-11L Aseptic Homogenizer Beating, also known as a Bead Beater, is widely used for homogenization of animal tissues, biological samples, and other materials. It can be applied in various fields, such as food, pharmaceuticals, cosmetics, clinical, molecular biology, toxin and bacteria testing, and is particularly suitable for the preparation of microbial detection samples. The device uses a stainless steel system to effectively separate solid sample surfaces and homogenize microbial uniform samples. The sample is placed in a disposable sterile homogenization bag, which does not come into contact with the instrument and has the characteristics of soft homogenization, no contamination, no damage, no heating, no sterilization treatment, and no need to wash vessels, meeting the requirements of fast, accurate results and good reproducibility. The product is also suitable for homogenizing tumor tissues (such as liver cancer, colon cancer, stomach cancer, and breast cancer) to obtain a large number of single cells (2×100,000 can be obtained within 2 minutes). If necessary, the homogenization time can be extended to achieve soft fragmentation of tissue cells (such as liver). |
Product Applications |
---|
● Large LCD screen display, touch control |
● Equipped with heating function for convenient melting of frozen samples |
● Can store eight sets of working programs |
● Adjustable homogenization time |
● Homogenization speed can be adjusted or fixed |
● Beater distance can be adjusted front and back |
● Sterile disposable filter bag ensures hygiene and safety |
● Fully open door for easy cleaning |
● Glass transparent window for easy observation |
● The sample does not come into contact with the homogenizer, and if there is no sample leakage, there is no need to clean the system |
● Homogenization is gentle, sample is free from contamination or damage, no temperature rise, no need for sterilization, and no need to wash the container |
Technical Parameters | |
---|---|
Model: | DH-11L |
Voltage: | 220V/50Hz |
Beating Speed: | 3-12 times/second, actual beating times displayed, system automatically adjusts beating speed |
Timing: | 0-99 hours 59 minutes 59 seconds |
Multi-programming: | 8 groups of programming, any parameter combination can be set |
Temperature Control Range: | ambient temperature + ~60℃ |
Beating Interval: | 0-50mm adjustable (adjusted by rear knob) |
Maximum Power: | 500W |
Sterile Bag: | 17×30cm |
Sterilization Function: | Beating chamber disinfection lamp, pre-disinfection of working chamber; (single disinfection cycle 5min, disinfection wavelength 253.7min) |
Total Weight: | 19 Kg |
Dimensions: | 420×230×330 mm |
Single Page - Color Page | ||
---|---|---|
Name: | Author: | Action: |
Aseptic Homogenizer Beating DH-11L | homogenizer | Download |
Related products | |
---|---|
Name: | Model: |
Homogenizer Beating | DH-08S |
Aseptic Homogenizer Beating | DH-11L |
Homogenizer with Sterile Beating | DH-09S |
DH-11L | Unit |
---|---|
Host Machine | Unit |
Homogeneous | bag |

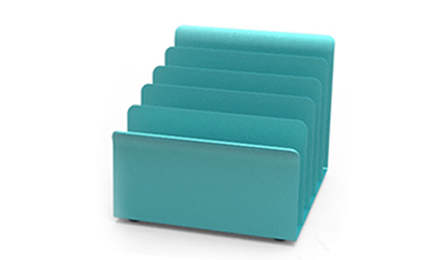

Homogeneous frame | set |
User manual | copy |
Warranty card | copy |
Certificate of qualification | copy |
|
